Kit molle a elevate sollecitazioni Beehive®

FEULING OIL PUMP CORP.
Twitter, Facebook, Instagram o simili. Se carichi questi contenuti, i dati personali saranno trasferiti a questa piattaforma ed eventualmente a terze parti.

Per maggiori informazioni, consulta la nostra politica sulla Privacy e i Cookie.

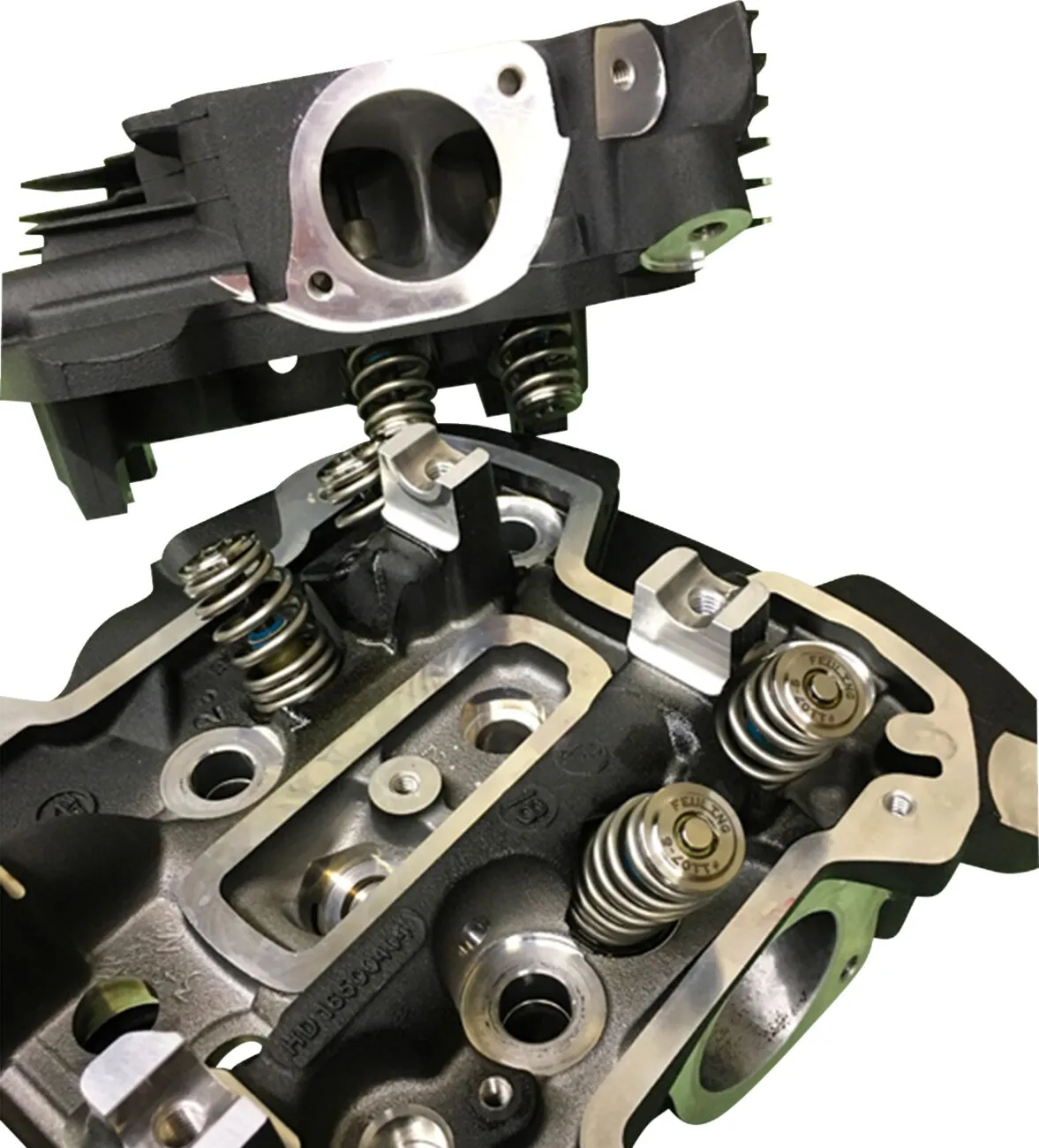

  • Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
  • FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
  • Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift
  • Springs will accommodate over 0.600" cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
  • Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
  • Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

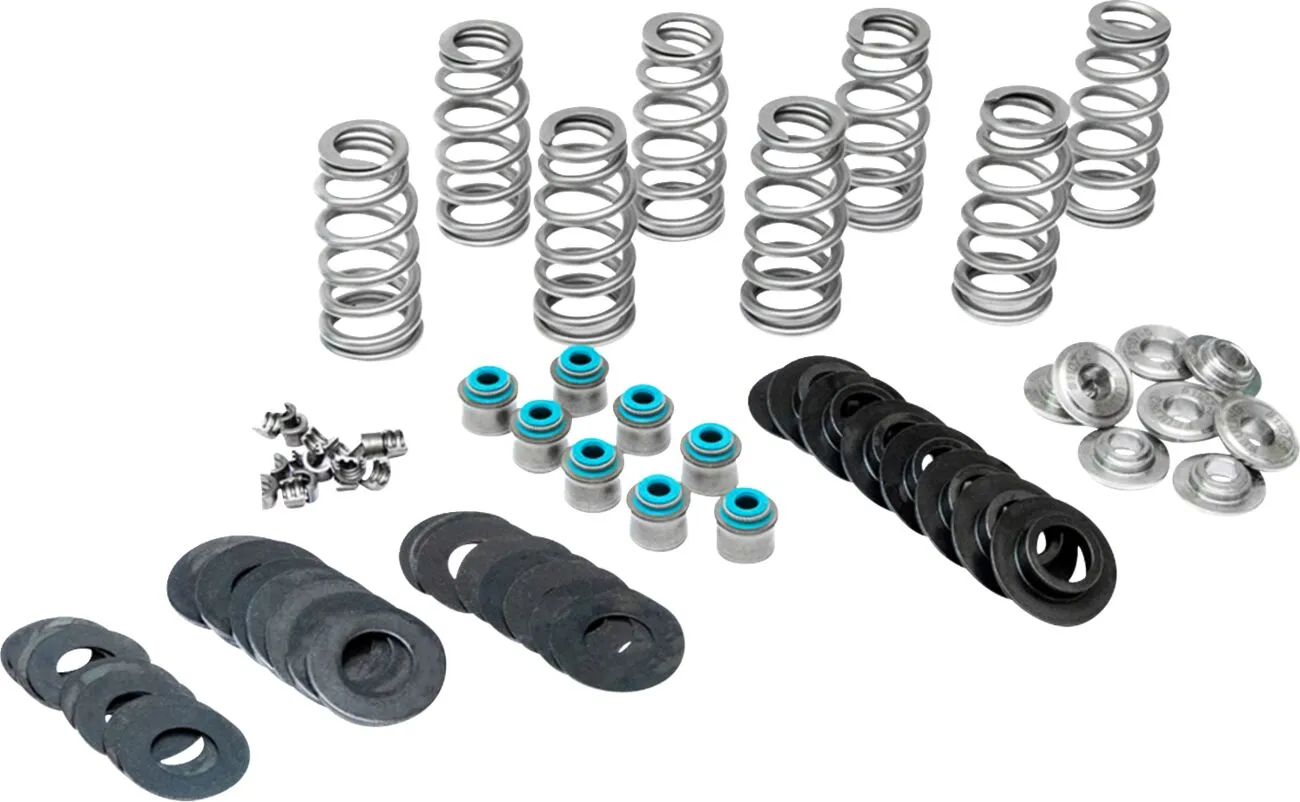

  • Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
  • Seat lb/Installed Height
  • 151 lb @ 1.475" (0.485" Lift)
  • 144 lb @ 1.498" (0.508" Lift)
  • 143 lb @ 1.501" (0.511" Lift)
  • 140 lb @ 1.511" (0.521" Lift)
  • 124 lb @ 1.562" (0.578" Lift)
  • 120 lb @ 1.582" (0.592" Lift)
  • 304 lb @ 0.990" open height
  • Coil Bind @ 0.945"
  • Recommended for +0.540” lift camshafts
  • Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
  • Made in the USA
  • Only recommended for large lift camshafts and race style engines as these valvesprings if not set properly will create extreme rocker arm deflection.
  • EU: Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 1,435 cm lift
  • EU: Springs will accommodate over 1,524 cm cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
  • EU: 68,49 kg @ 3,747 cm(1,232 cm Lift
  • EU: 65,32 kg @ 3,805 cm(1,290 cm Lift)
  • EU: 64,86 kg @ 3,813 cm(1,298 cm Lift)
  • EU: 63,50 kg @ 3,838 cm(1,323 cm Lift)
  • EU: 56,25 kg @ 3,968 cm(1,468 cm Lift)
  • EU: 54,43 kg @ 4,018 cm(1,504 cm Lift)
  • EU: 137,89 kg @ 2,515 cm Open Height
  • EU: Coil Bind @ 2,400 cm
  • EU: Recommended for 1,372 cm + lift camshafts
Marchio
FEULING OIL PUMP CORP.
Codice articolo produttore
1207
Denominazione prodotto
Kit molle
Modello
High-Load Beehive
Stile
Filo metallico a sezione ovale, Beehive
Tipo
Valvola
Unità
Kit

FEULING OIL PUMP CORP.

VALVE SPRINGS HIGH M8 17+

09263138 / 1207

762,55EUR*
*IVA al 19% inclusa
L'orario di arrivo stimato per questo articolo non è attualmente disponibile, contattare il Reparto vendite per ulteriori informazioni
0 In magazzino
